MBX Recoil Reduction Buffer System, MBX Air Buffer Recoil Reduction System, Buffer Tuning/Rebuild Kit, & Short Stroke Kit

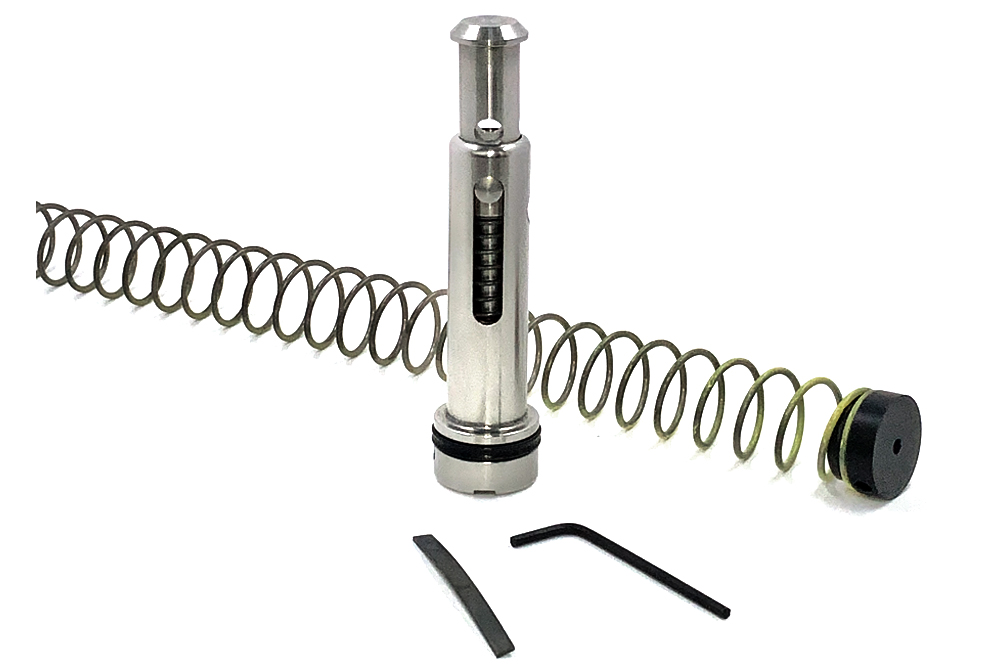

MBX Air Buffer Recoil Reduction Systems Patent Pending
Features and Information
How it Works!
The Air Buffer System is used in the buffer tube to control felt recoil and sits behind the bolt carrier. During the normal firing cycle, the bolt moves rearward at a high rate of speed. As the Air Buffer System moves rearward the air is compressed within the buffer tube causing resistance due to a rise in air pressure. The rifle's bolt carrier velocity is subsequently reduced and felt recoil is reduced. Also the Air Buffer System creates a vacuum when the bolt travels into battery therefore reducing the harsh slam, muzzle dip, and perceived sight movement. Translation, less felt recoil and less movement in the sighting system means faster shooting with better hits than most standard buffer systems. The Air Buffer System uses a special low friction self lubricating X-Ring seal placed around the buffer that captures air within the buffer tube converting it into an air shock absorber. The X-ring seal also keeps the metal buffer head from contacting the tube directly and this makes for a very SMOOTH quiet action during operation.
The Air valve screw on the buffer’s face is screwed in clockwise, closing the passage, to reduce the air loss, thus increasing air compression/pressure within the tube and decreasing felt recoil. Turning counter clockwise, opening the air flow, will allow more air to escape reducing the compression and dampening effect.
MBX Air Buffer Installation Video
MBX Buffer System Accessories
MBX Buffer Spring Kit, Short Stroke Kit, & Buffer System Accessories

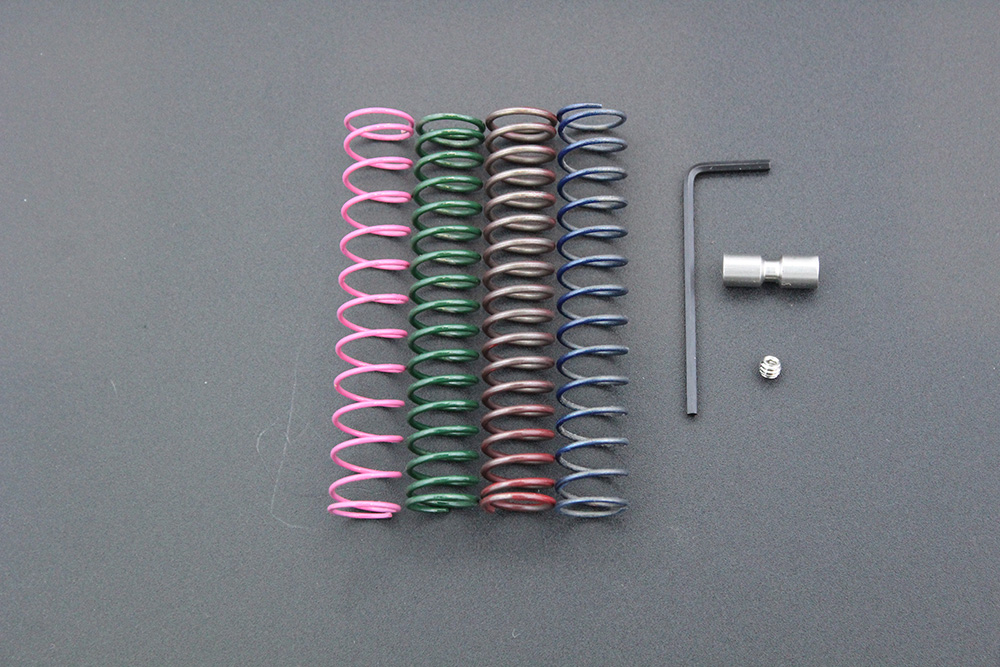

MBX Buffer Spring Tuning/Rebuild Kit
Increase or Decrease your Power Factor with MBX Buffer Tuning/Rebuild Kit.
Buffer Spring Tuning/Rebuild Kit Includes:
- 4 Springs
- Buffer Pin
- Set Screw
- Allen wrench
- Please see video for instructions
MBX Adjustable 5 Piece Short Stroke Kit
Tune your Preference in Trigger and Cyle Speed with MBX Short Stroke Kit.
- Long & Medium Shim
- 3 Stack Shims .100-.200-.300
- Allows Multiple combinations of stroke length allowing you to tune your preference in trigger load and cycle speed.
- Use with 9mm AR

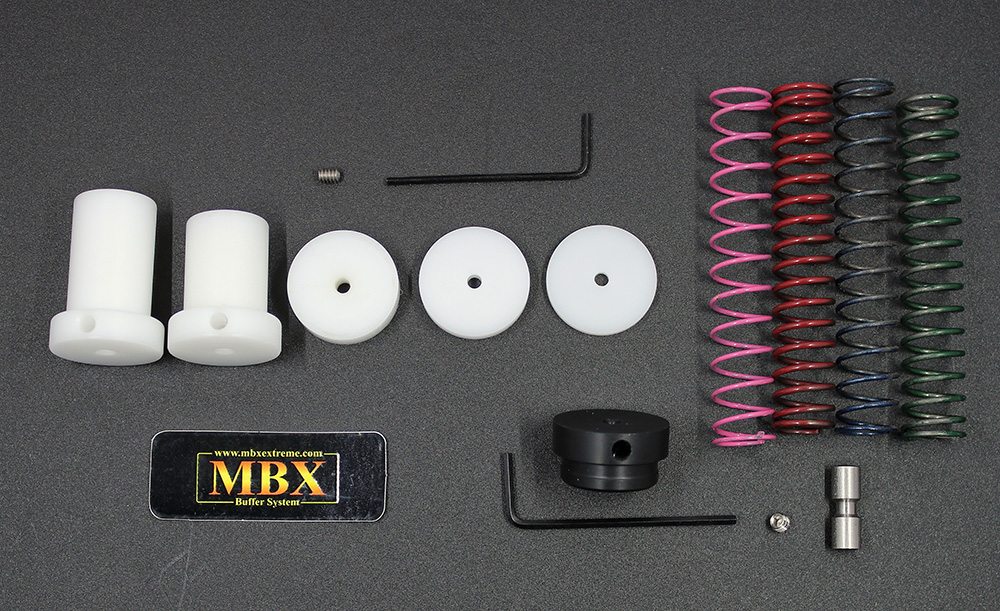

MBX Ultimate Short Stroke Tuning Kit
A Combination of MBX Buffer Tuning/Rebuild Kit and MBX Adjustable 5 Piece Short Stroke Kit for the Ultimate in Performance Preference.
